XE33#2S

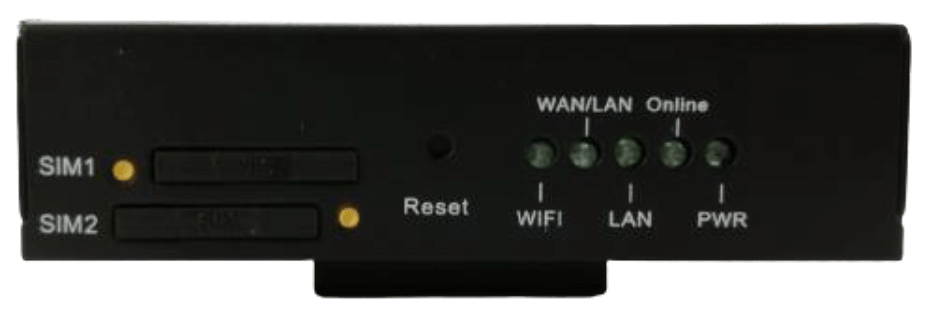

XE33#2S XE33#2S RUGGED ON-BOARD COMPUTER ROUTER, HIGH SPEED, DUAL WAN, DUAL SIM LTE

ROUTEUR INFORMATIQUE DE BORD ROBUSTE, HAUTE VITESSE, DUAL WAN, DUAL SIM LTE
ROUTEUR INFORMATIQUE DE BORD ROBUSTE, HAUTE VITESSE, DUAL WAN, DUAL SIM LTE

With Dual WAN data connectivity including one Ethernet WAN and two LTE Cat 4 WANs with dual SIM, Niseva Technologies’ XNET EDGE XE33#2S series aims to take the speed and reliability of connectivity to the next level. Equipped with a powerful processor, assisted by programmable Linux-based intelligent embedded software, with a host of natively supported industrial protocols, and seamless integration with XNET Cloud, the XE-33 series is a perfect choice for enterprise, industrial, and IoT deployments.

⇒ Speed and redundancy
⇒ Double Sim passive active
⇒ Powerful CPU and built-in intelligence
⇒ Industrial Protocol Support
⇒ IOT Cloud Connectors
⇒ Security

Device Specifics

Hardware Interfaces for XE-33#2S

1 X Ethernet LAN Ports with 15 KV ESD Protection1 X Ethernet WAN Port Switchable to LAN with 15 KVPeD Protection1 X RS232 or RS485 with 15KV ESD Protection(3 RS232 and 1 RS485 for XE33#2S#ext)1 X CAT 4 LTE Cellular2 X Mini SIMWi-Fi 802.11 b/g/n 2.4Ghz – Hotspotet Client Mode

Hardware Details

CPU – 580 MHz Qualcomm CPUFlash – 16 MoRAM – 128 Mo

Cellular

LTE FDD : B1/B3/B5/B8LTE TDD : B34/B38/B39/B40/B41TD-SCDMA : B34/B39WCDMA : B1/B8GSM : 900/1800 MHz

Cellular data rates

LTE CAT 4 :
LTE FDD : Max 150 Mbps (DL)/Max 50 Mbps (UL)LTE TDD : Max 130 Mbps (DL)/Max 30 Mbps (UL)
UMTS :DC-HSDPA : Max 42 Mbps (DL)HSUPA : Max 5,76 Mbps (UL)WCDMA : Max 384Kbps (DL)/Max 384Kbps (UL)
GSM :EDGE : Max 296Kbps (DL)/Max 236,8Kbps (UL)GPRS : Max 107Kbps (DL)/Max 85,6Kbps (UL)

LED

Power/Start LEDsSignal StrengthDevice Network RegistrationCellular Data ActivityLAN/WAN Data Activity

Charging

6-36 VDC with phase inversion protectionMaximum power consumption: 4WToperating voltage-35 to +75 degrees Celsius95% non-condensed relative humidity

Routing Features

DHCP Server, DHCP Client, Static Routes, TrafficRouting, Port Forwarding, Dynamic DNS, NAT

Performance redundancy

Triple redundancy with 1 x fast Ethernet WAN and 2 x Cat 4 LTE WANConctional for all WANs and loadbalancing or failover between WANChien on data connectivity and hardware watchdog

Security and tunneling

IPSec with IKEV1, IKEV2, selectable encryptionschemas, selectable hash algorithms, and dead peerOpenVPN Client Detection, Open VPN Pas through
OpenSSLarea-based firewallPacket inspection with status and synchronization flood protectionSim pinSource/destination IP address binding

Direction

WebSNMP based local and remote configuration V1, V2, V3Built-in XNET support

Industrial Protocol Support

Modbus MasterIEC 101 Master/SlaveIEC 104 Master/SlaveModbus to IEC 104 ConverterIEC 101 to IEC 104DNP3 SlaveOPC- UA Converter (Provided)

Connectivity protocols

TCP/UDP/FTP/HTTP/MQTT/NTP/ICMP/HTTPS*/SMTP*/FTPS*/SMTPS*

Dimensions

93mm X 89mm X 24mm without cables and antennasWeight – 250g for XE22#2S126mm X 89mm X30mm without cables and Anennas
Weight – 320gms for XE33#2S#extIP 30
